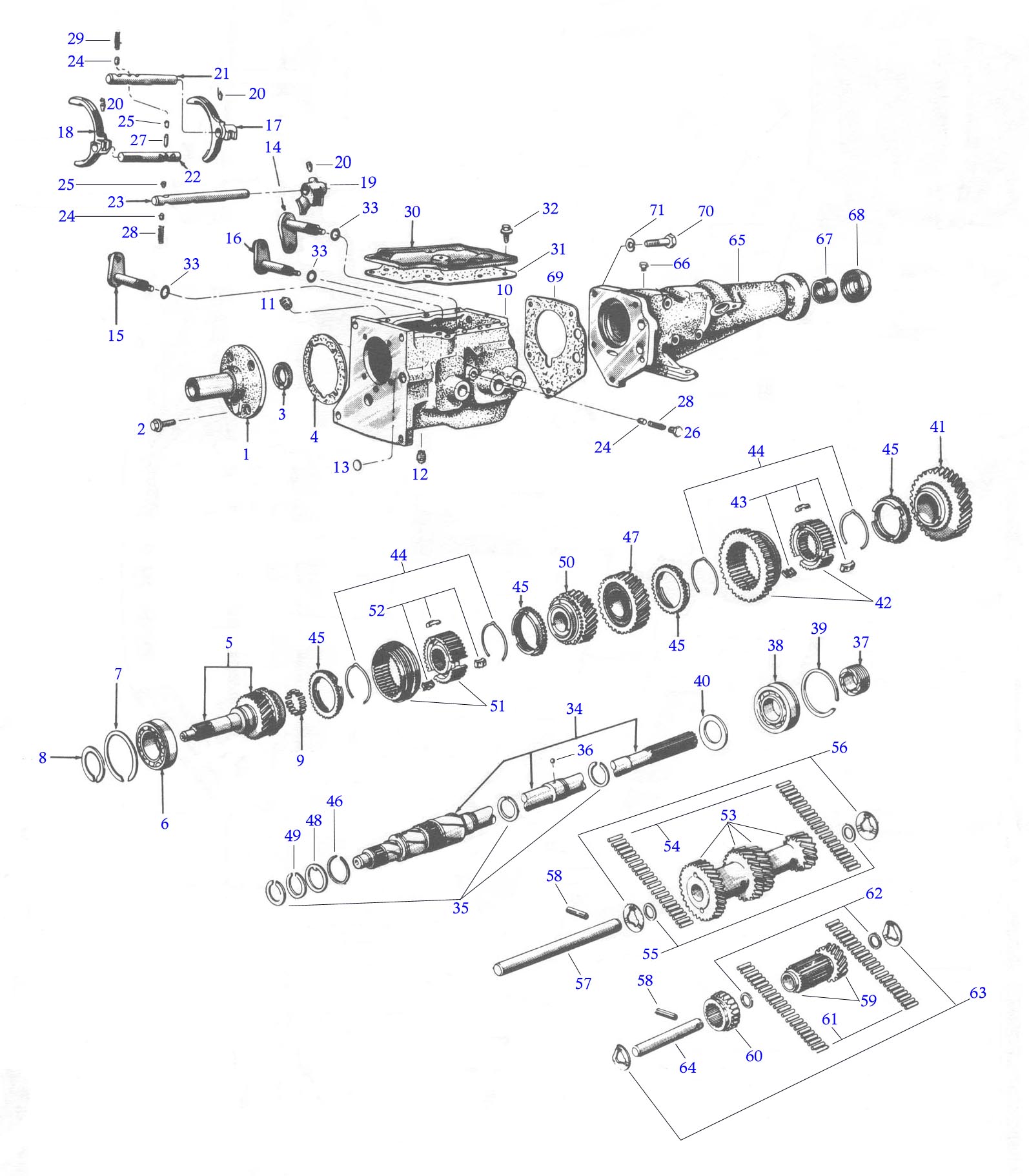

EXPLODED VIEW OF A TOPLOADER For a larger image, click here. All of the part location numbers in red are included in our Master Rebuild Kit. To go to our online store, click on the description of the part.
For a larger image, click here.
All of the part location numbers in red are included in our Master Rebuild Kit. To go to our online store, click on the description of the part.
Location Quantity Description Location Quantity Description 1 1 Bearing Retainer 37 1 Speedometer drive gear 2 4 Bolt 38 1 Rear Bearing 3 1 Front seal 39 1 Snap Ring (rear bearing) 4 1 Gasket 40 1 Thrust Washer (first gear) 5 1 Input shaft 41 1 First Gear 6 1 Front bearing 42 1 1-2 Synchro Assembly 7 1 Snap Ring (bearing) 43 3 1-2 Synchro Keys 8 1 Snap Ring (input shaft) 44 4 C- Spring 9 15 Needle Bearings 45 4 Bronze Blocker Ring 10 1 Main Case 46 1 Snap Ring 11 1 Fill Plug 47 1 Second Gear 12 1 Magnetic Drain Plug 48 1 Thrust Washer 13 1 Case Plug 49 1 Snap Ring 14 1 1-2 Cam and Shaft 50 1 Third Gear 15 1 3-4 Cam and Shaft 51 1 3-4 Synchro Assembly 16 1 Reverse Cam and Shaft 52 3 3-4 Synchro Keys 17 1 1-2 Shift Fork 53 1 Cluster Gear 18 1 3-4 Shift Fork 54 42 Needle Bearing 19 1 Reverse Fork 55 2 Needle Bearing Retainers 20 3 Set Screw 56 2 Metallic Thrust Washer 21 1 1-2 Shift Rail 57 1 Counter Shaft 22 1 3-4 Shift Rail 58 2 Roll Pin 23 1 Reverse Shift Rail 59 1 Rear Reverse Idler Gear 24 3 Detent (round) 60 1 Reverse Idler Gear (slider) 25 2 Detent (hatchet head) 61 44 Needle Bearing 26 1 Bolt (side detent) 62 2 Needle Bearing Retainer 27 1 Interlock pin 63 2 Metallic Thrust Washer 28 2 Detent Spring (short) 64 1 Reverse Gear Counter Shaft 29 1 Detent Spring (long) 65 1 Tailhousing 30 1 Top Cover 66 1 Air Vent 31 1 Top Cover Gasket 67 1 Bushing 32 10 Bolt (top cover) 68 1 Seal 33 3 O-Ring 69 1 Gasket 34 1 Mainshaft 70 5 Bolt (tailhousing) 35 3 Snap Ring 71 5 Lock Washer 36 1 Steel Ball Kit 1 Master Rebuild Kit
